07 Street Glide

07 Street Glide

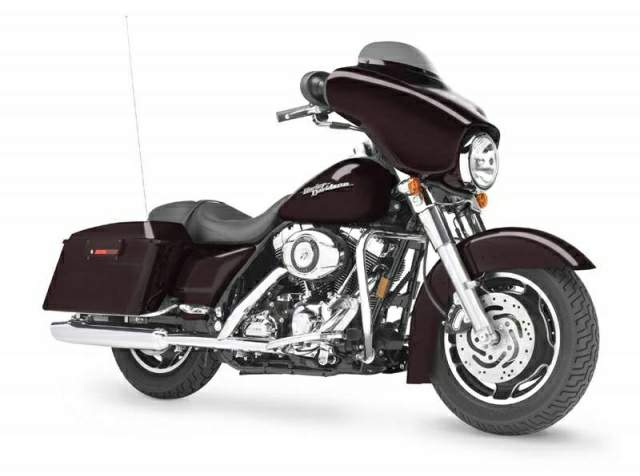

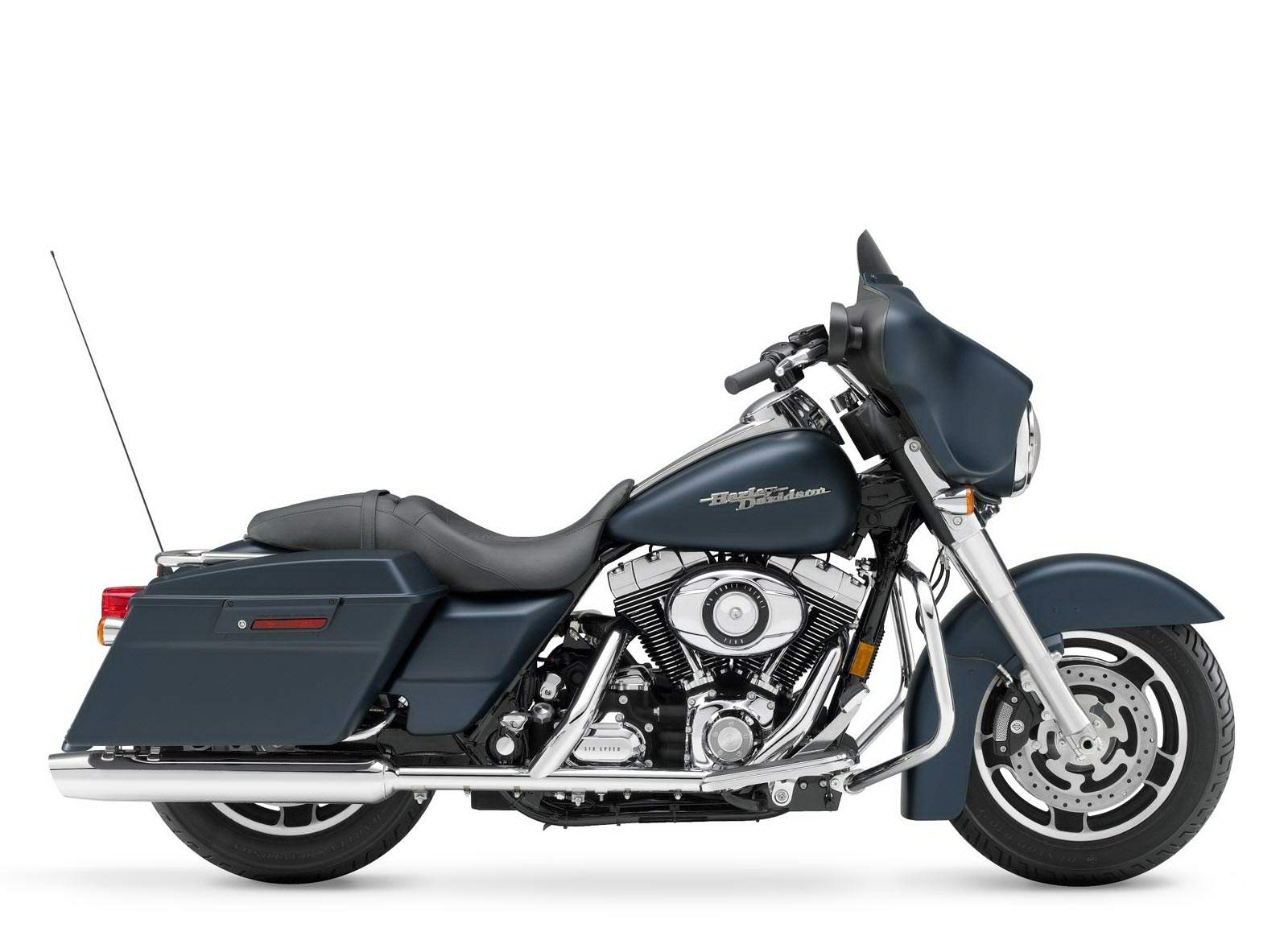

Harley Davidson FLHX Street Glide

Make Model

Harley Davidson FLHX Street Glide

Year

2007

Engine

Four stroke, V-Twin, 'Twin Cam 96'

Capacity

1584 cc / 96.6 cu-in
Bore x Stroke 95.25 x 111.25 mm
Cooling System Air cooled
Compression Ratio 9.2:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition

Starting

Electric

Max Torque

124.7 Nm / 92 ft. lbs @ 3000 rpm

Transmission

6 Speed
Final Drive Belt
Gear Ratio 1st 9.312 9.312 9.312 2nd 6.421 6.421 6.421 3rd 4.774 4.774 4.774 4th 3.926 3.926 3.926
5th 3.279 3.279 3.279 6th 2.790 2.790 2.790
Frame Mild steel, square-section backbone with twin downtubes

Front Suspension

41.3 mm telescopic, cartridge-style damping

Rear Suspension

Short, air-adjustable shock

Front Brakes

2x 292mm disc 4 piston caliper

Rear Brakes

Single 292mm disc 4 piston caliper

Front Tyre

MT90B16

Rear Tyre

MU85B16

Rake  26�
Trail 170 mm / 6.7 in
Fork Angle  29.2�
Dimensions Length 2413 mm /  95.0 in.
Width  965 mm / 38.0 in.
Height  1326 mm / 52.2 in.
Wheelbase 1613 mm / 63.5 in
Seat Height Laden2 668.0 mm / 26.3 in
Unladen  693.4 mm / 27.3 in.
Gross Vehicle Weight Rating 616 kg / 1360 lbs

Wet Weight

367 kg / 810 lbs

Fuel Capacity

22.7 Litres / 6.0 gal

FLHX Street Glide� Model Overview
The FLHX Street Glide has proved to be every bit the dresser with an edge for riders interested in considerable custom and comfort. Taking its key styling cues directly from design trends in the custom marketplace, the Street Glide presents full touring capability in style and comfort. It comes equipped with the traditional "bat wing" fairing, the 40-watt Advanced Audio System by Harman/Kardon, durable GTX nylon saddlebags, air-adjustable rear suspension and triple-disc brakes.

By adding the Twin Cam 96 engine, 6-speed Cruise Drive transmission and ESPFI, while reducing clutch lever effort, the Street Glide becomes even more capable of cruising the streets or touring the country. Also new this year is a redesigned football shape air cleaner.

A smoked mini-wind deflector sits above a batwing fairing with mounted mirrors. Low rear suspension puts the Street Glide close to the road with a seat height of 26.3 inches. The rear fender is filled between the saddlebags with Tri-line LED lighting to the bottom of the fender. Black, Slotted Disc Cast Aluminum wheels and slash-cut mufflers further emphasize the low profile.

Streamliner footboards, brake pedal and passenger pegs add to the Street Glide custom styling. A stretched, chrome fuel tank console features a special smoked-chrome emblem. The style and performance combines for a lower, lighter and cleaner touring motorcycle that rides proudly with its Electra Glide heritage. The Street Glide is available in six solid colors: Vivid Black, Black Cherry Pearl, Black Pearl, Deep Cobalt Pearl, Pacific Blue Denim and Pewter Denim.

FLHX Features:

New rubber mount 1584cc Twin Cam 96 engine
Black powder-coated engine with chrome covers
New 6-speed Cruise Drive transmission
Standard Electronic Sequential Port Fuel Injection (ESPFI)
New redesigned football shape air cleaner
40-watt CD/AM/FM/WB/MP3 Advanced Audio System by Harman/Kardon
Silver face gauges
Batwing fork-mounted fairing with smoked mini wind deflector
Fairing-mounted rear view mirrors
Clean front fender
Black, Slotted Disc Cast Aluminum wheels
Smoked chrome 3-D tank emblem
Custom bucket seat with perforated insert
Streamliner footboards, brake pedal and passenger pegs
Low Profile rear suspension
Rear fender ground effects
Low-hung license plate mount and hidden plate illuminator
Lockable GTX Nylon hard saddlebags with color-matched latches

07 Street Glide
